7.18 Connecting the superheating circuit

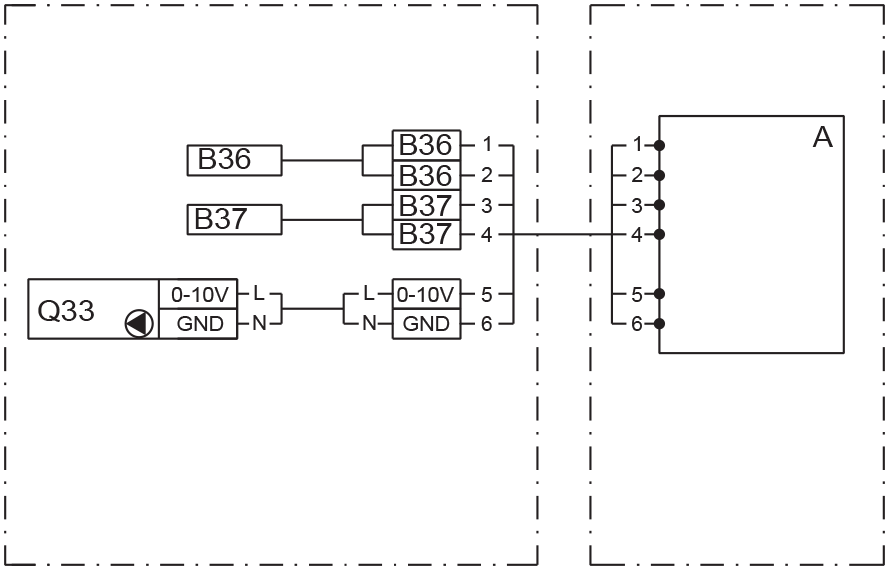

The superheating circuit has supply and return water sensors and an adjustable circulator pump. Connect the sensors (B36 and B37) and pump adjustment (0–10 V) to the higher-level automation system as shown in the figure.
