7.6 Connecting the domestic water resistor

An electric heater can be installed in the domestic water accumulator to heat the domestic water as additional or reserve heat.

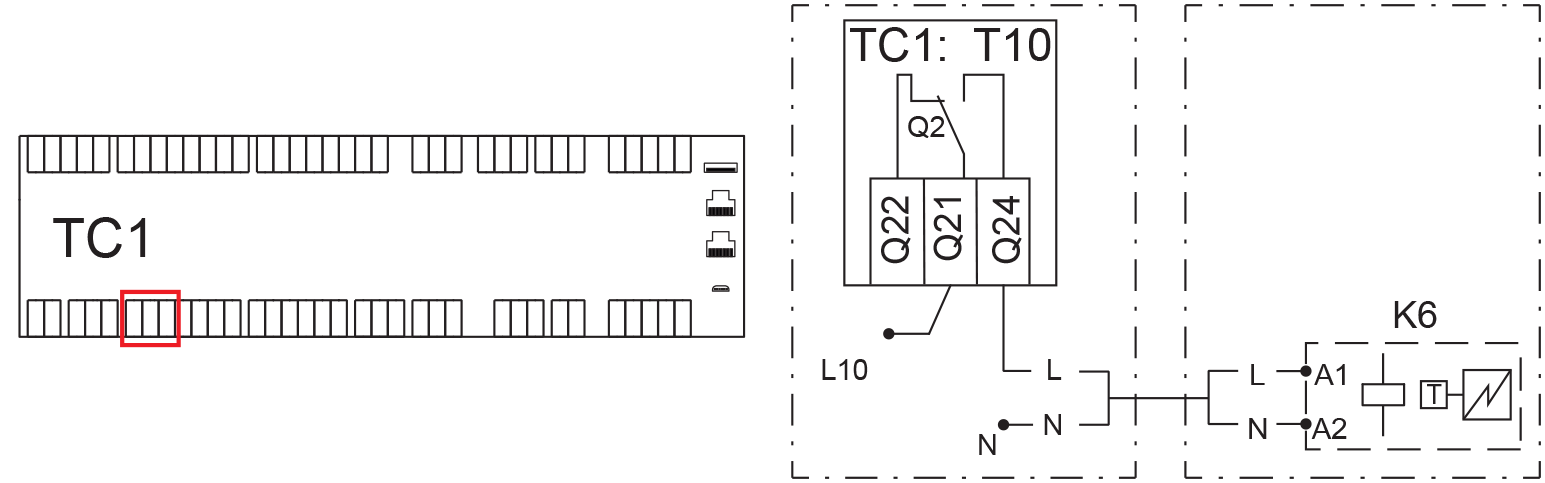

Connect the domestic water resistor (K6) to the relay Q2 and contact Q24 of the controller TC1.
