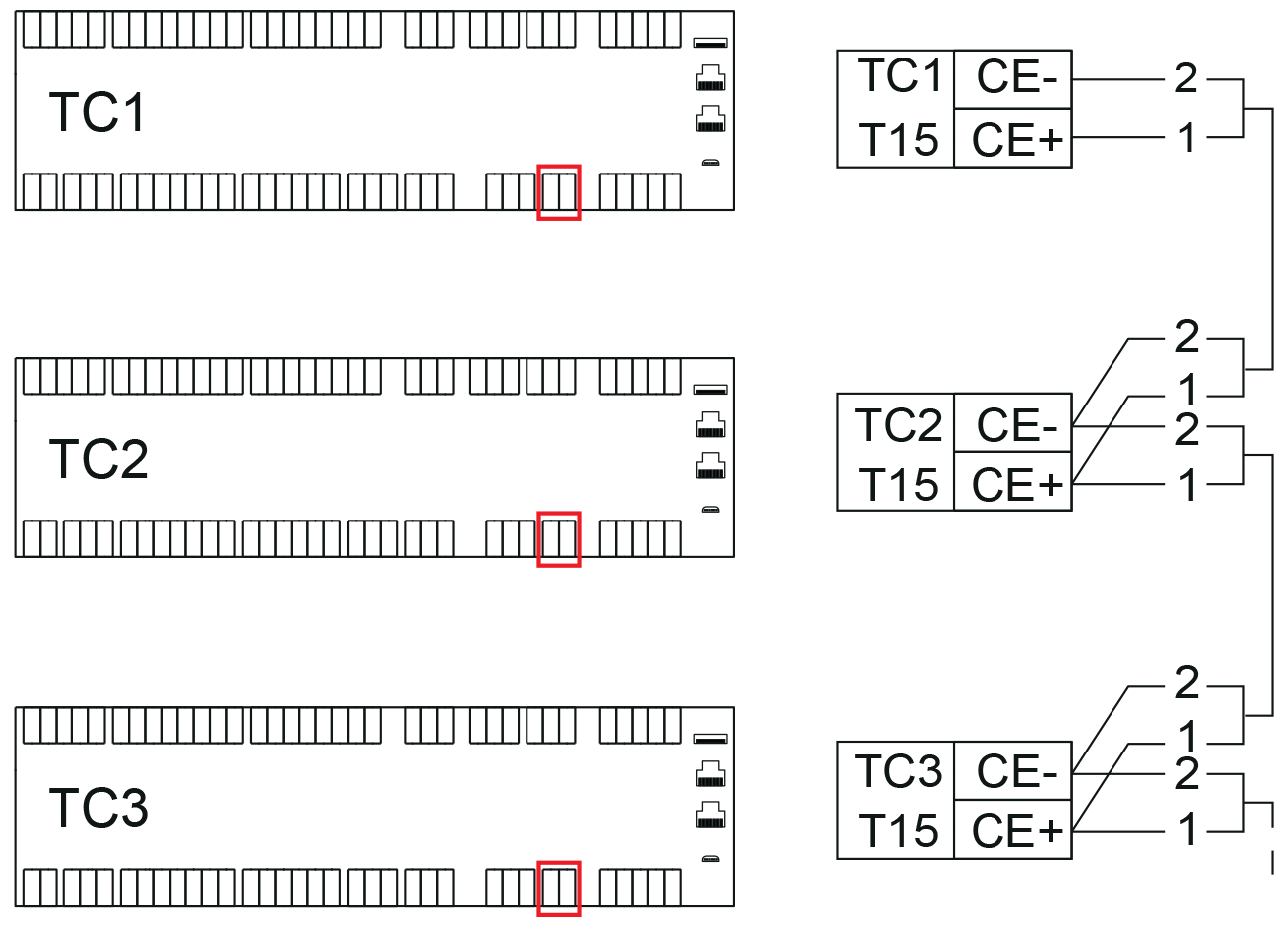

7.23 Connecting the cascade system

You can connect several heat pumps together as a cascade system. Set one device as master and other devices as slaves. Give each slave device its own device address.

Connect all external sensors to the master device. Device-specific change-over valves, external controls of compressors, alerts and the Modbus bus are connected to each device.
