7.11 Connecting the source pump external control

You can start the heat pump’s source pump using an external potential-free contact. This way the source pump can be used for passive cooling (DU1).

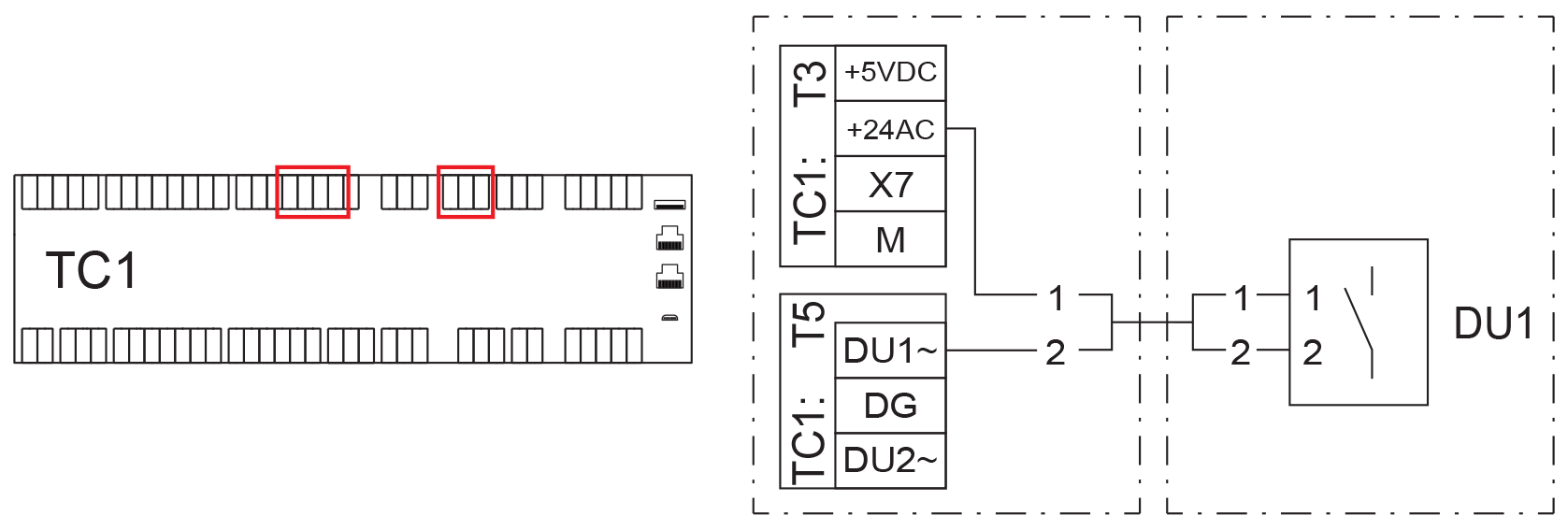

Connect the contact information to the controller TC1 as shown in the figure.
