7.19 Connecting the flowmeter

The device-specific flowmeter is an accessory to measure the flow in the condenser. This measurement provides information on the amount of energy produced and efficiency.

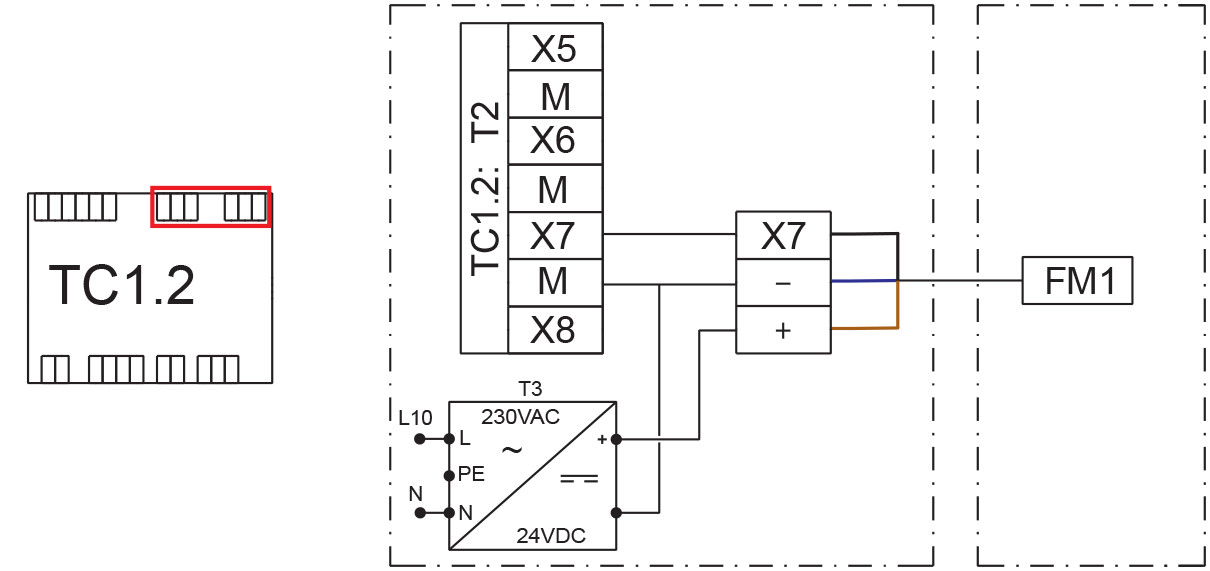

The flowmeter (FM1) is installed outside the heat pump in the return water pipe. Connect the meter to the expansion module TC1.2 as shown in the figure.
