12 Performance value graphs

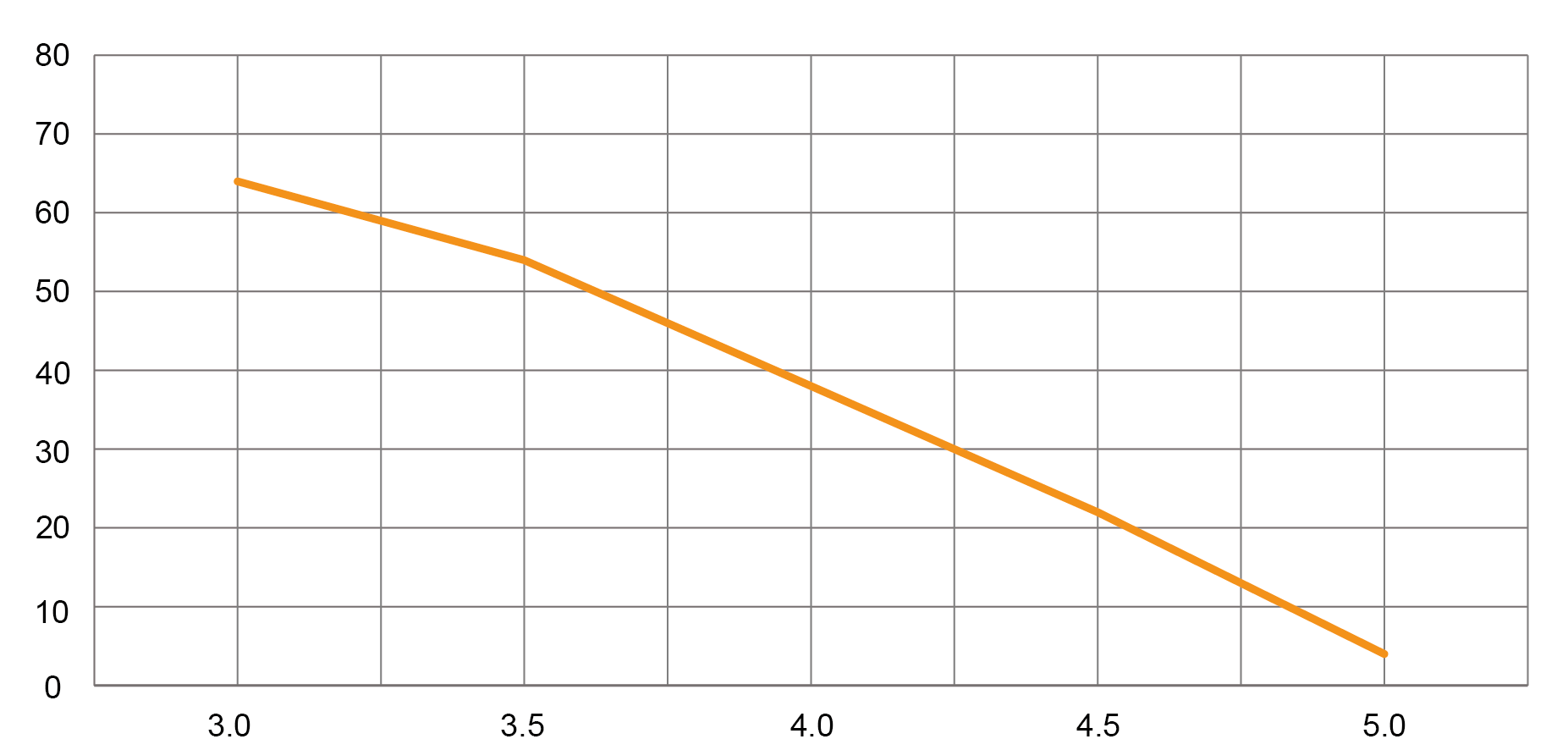

Figure 1. Taurus Inverter Pro, free lifting height, collector [kPa – l/s]

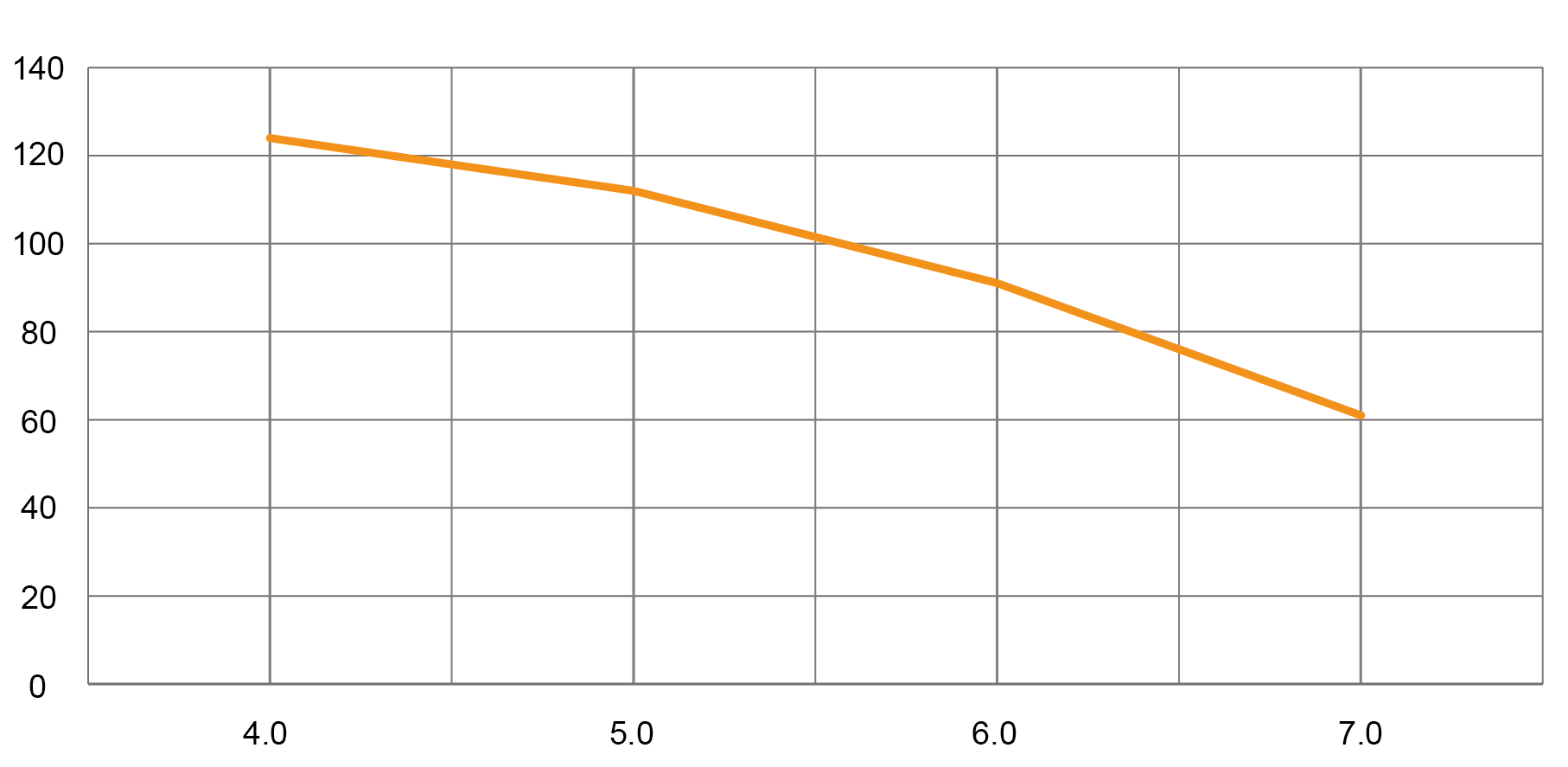

Figure 2. Taurus Inverter Pro, free lifting height, charge circuit [kPa – l/s]

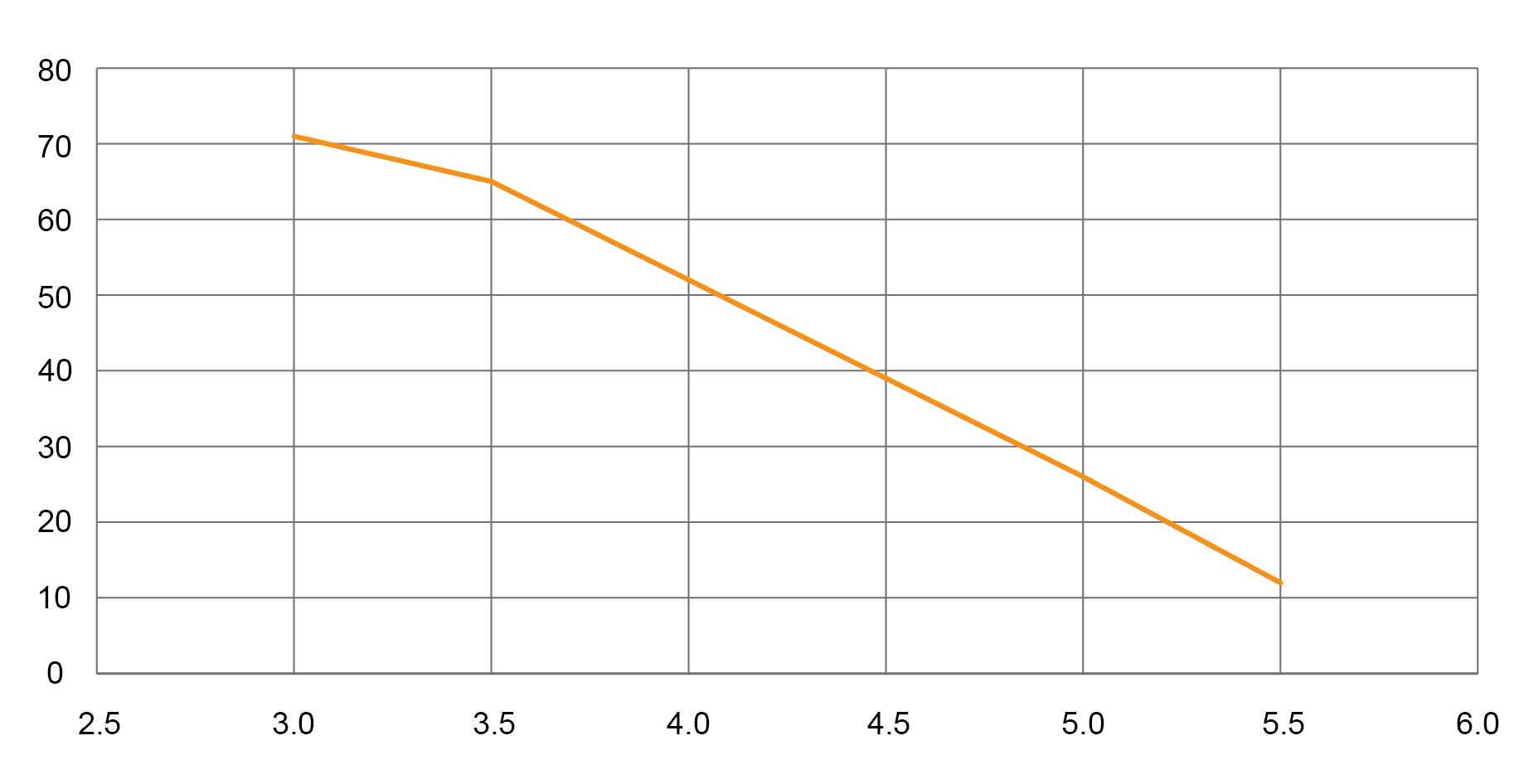

Figure 3. Taurus 80/110 EVI, free lifting height, collector [kPa – l/s]

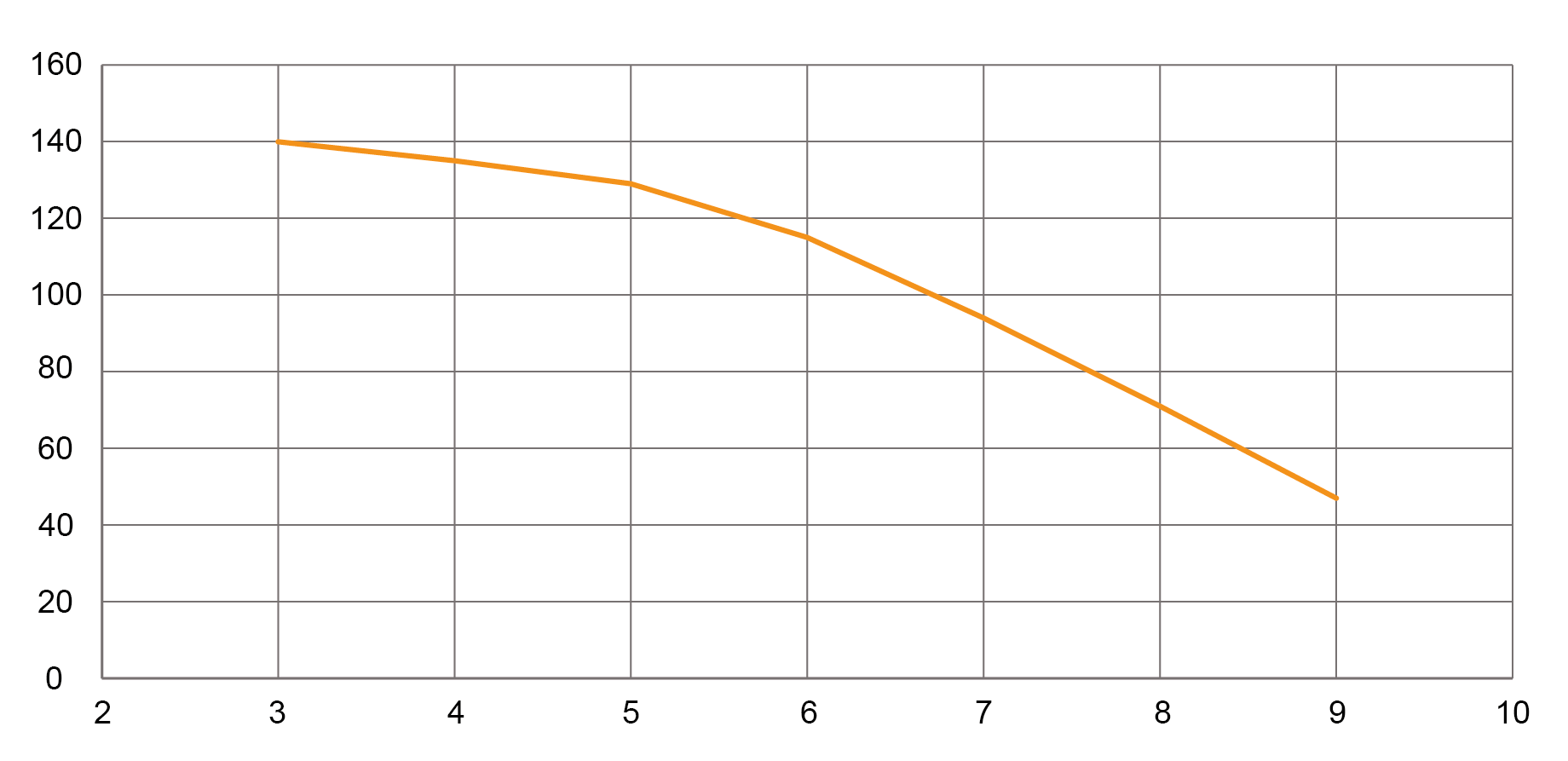

Figure 4. Taurus 80/110 EVI, free lifting height, charge circuit [kPa – l/s]
