7.10 Connecting the continuous alert

A device-specific class A alert can be forwarded from the heat pump for higher-level automation system in the event of failure.

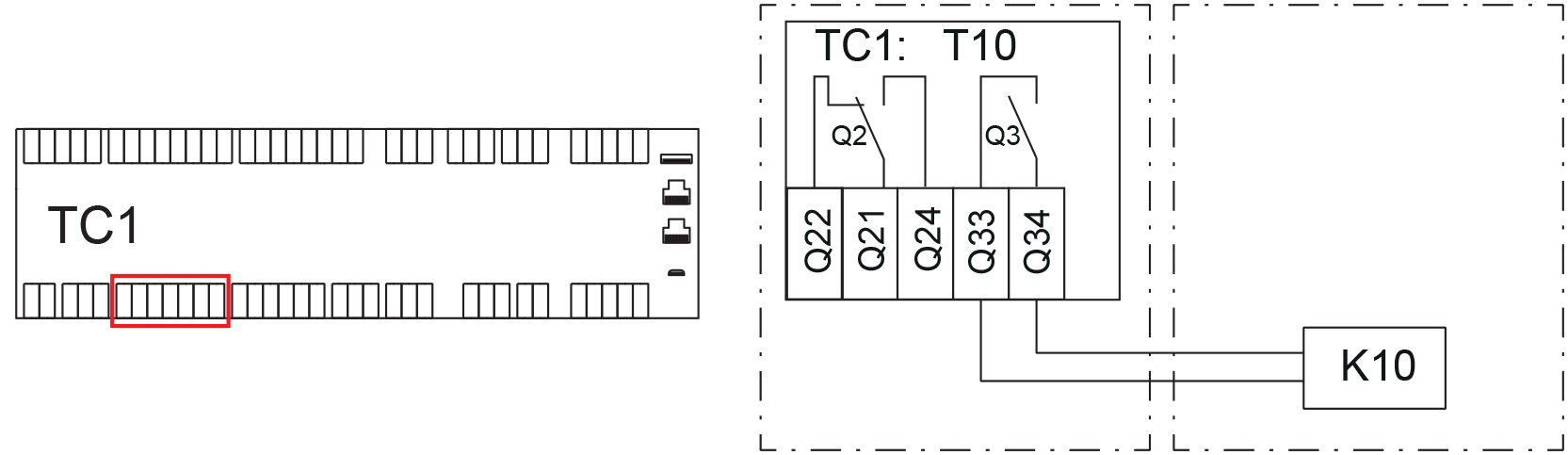

Connect the continuous alert (K10) to the potential-free relay Q3 of the controller TC1 as shown in the figure. Use a 2-pole cable with a cross-sectional area of at least 0.5 mm².
