7.20 Connecting the external control

A single heat pump or a cascade system with multiple pumps can be controlled with an external request sent to the analogue input.

The request can be based on the setpoint or the power needs. Specify the analogue input setpoints in the service menu, under Device settings.

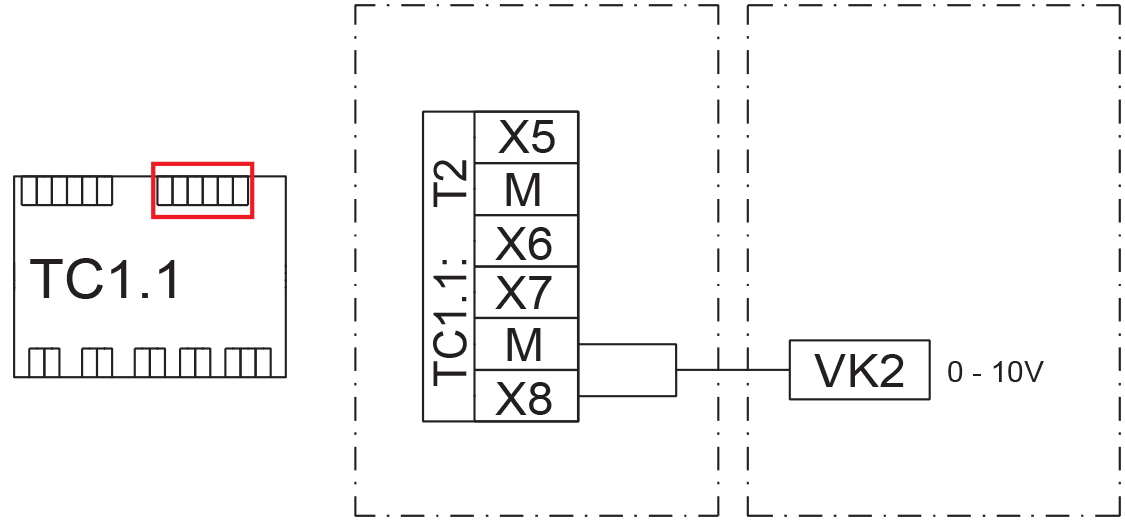

Connect the external request (VK2) to the expansion module TC1.1 as shown in the figure.
