7.4 Connecting the change-over valve

The heat pump can be equipped with an external change-over valve that controls heating and the production of domestic water. A cascade systems can have more than one change-over valve. Change-over valves are connected to devices producing domestic water.

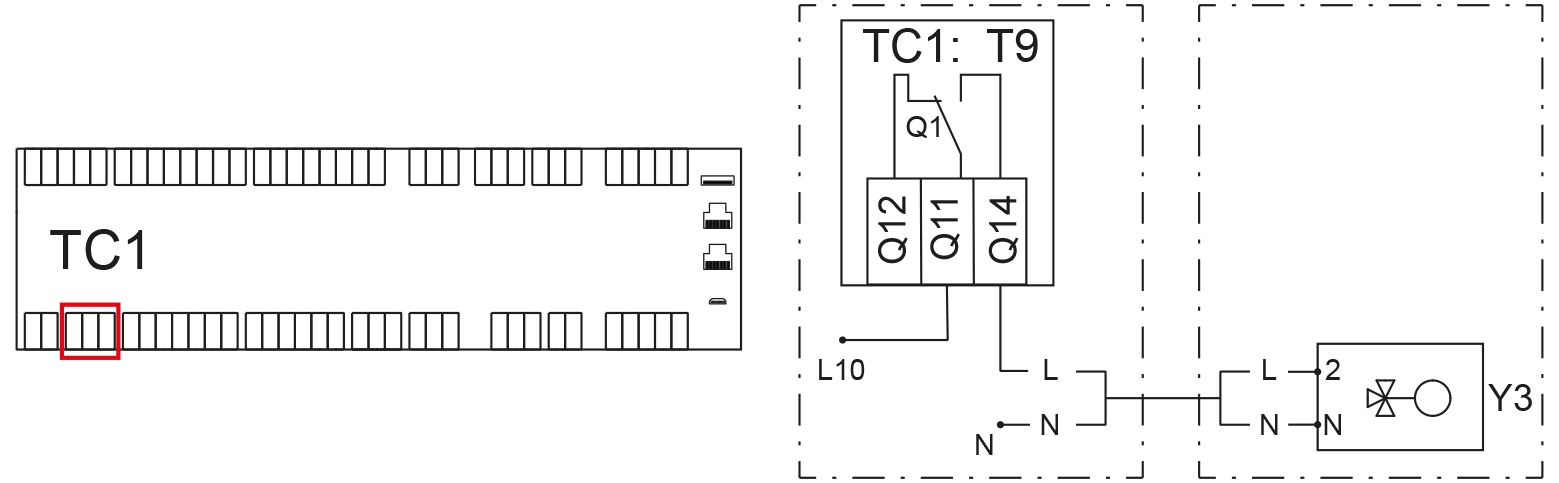

Connect the external change-over valve (Y3) to the heat pump controller as shown in the figure.
