5.3 Removing the heat pump packaging

Procedure

  1. Carefully remove the protective plastic without scratching the device.
  2. Make sure that the product is correct and includes the correct accessories.
  3. Lift the heat pump with, for example, a pallet truck or claw jacks.
    Take into account the centre of gravity of the device.

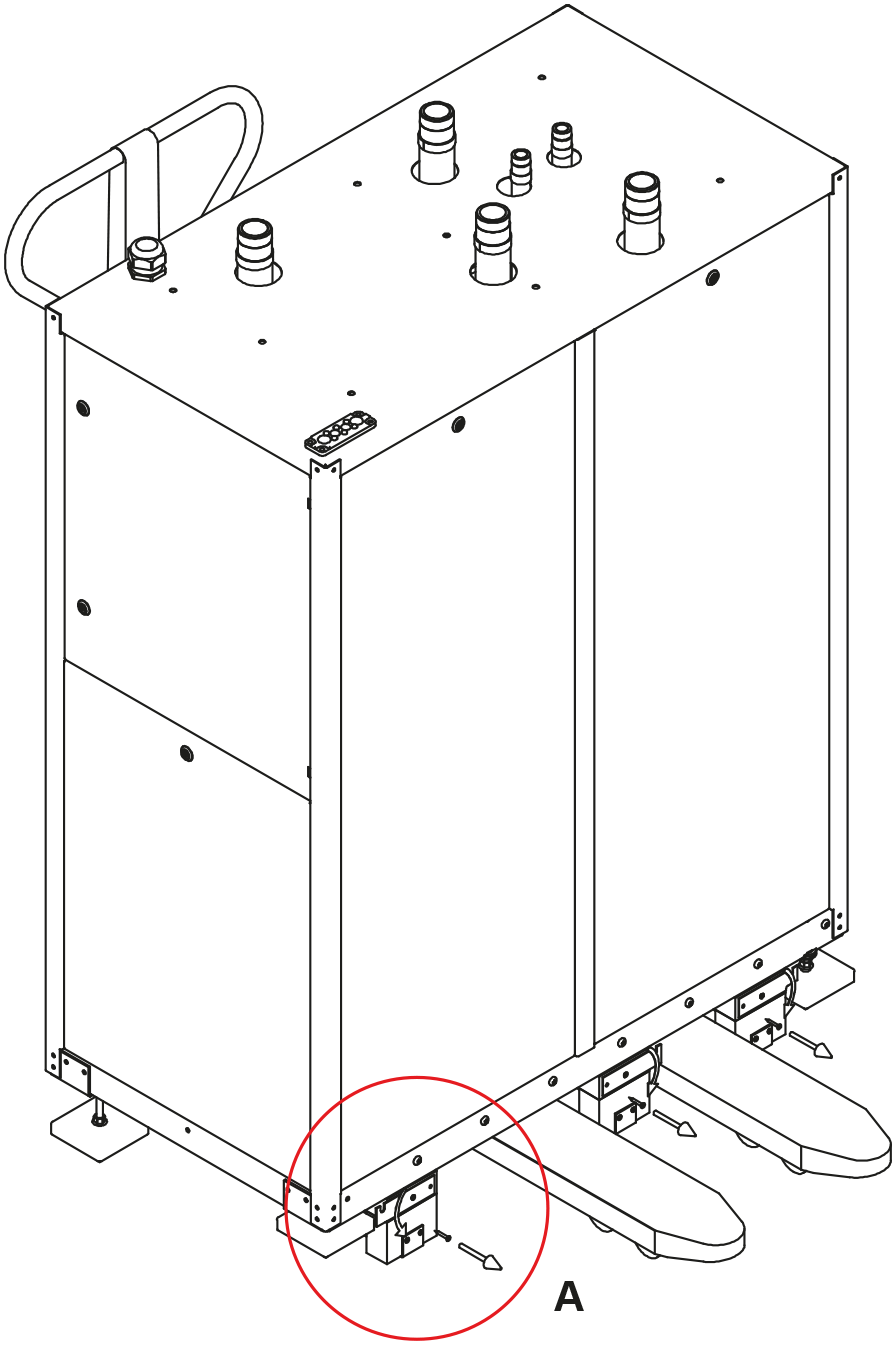

    Figure 1. Lifting the heat pump and the location of transport brackets
  4. Fit the leveling feet of the heat pump in place and adjust them close to the desired height.
  5. Turn the transport brackets.
    1. Open the screw located in the frame by 1–2 mm.
    2. Remove the lower screw of the bracket.
    3. Turn the bracket horizontally.
    4. Re-tighten the screw in the frame.

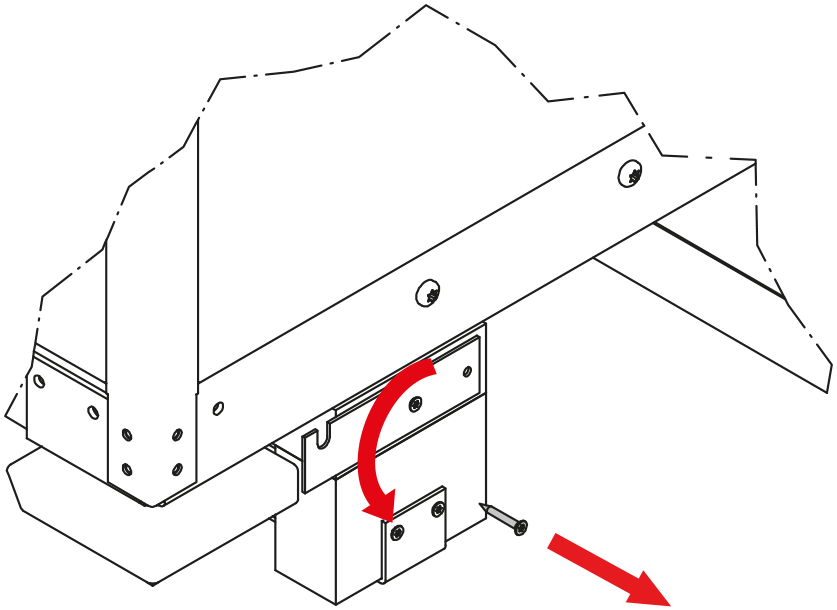

    Figure 2. Turning the transport brackets
  6. Pull the transport pallet out from under the heat pump.

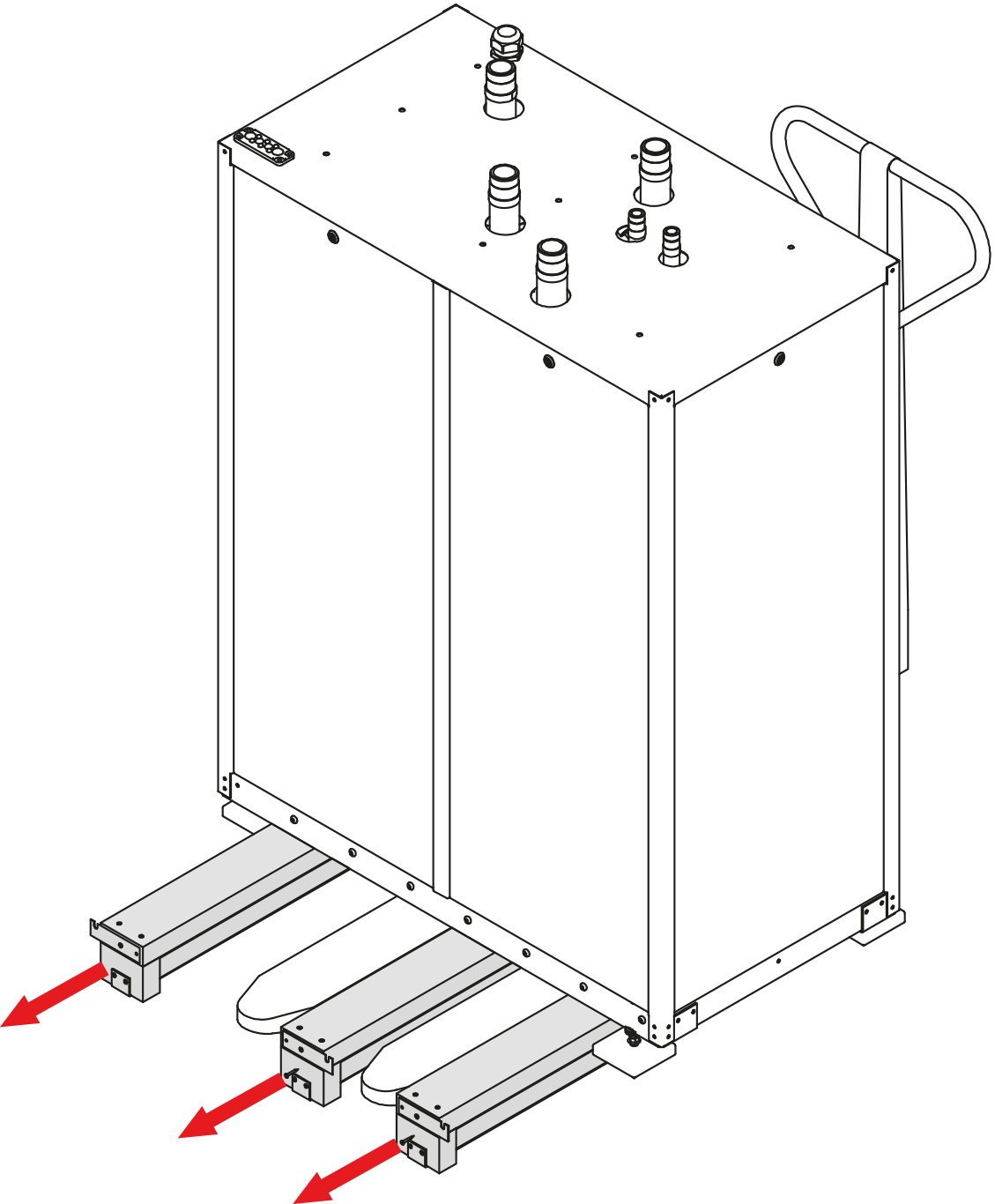

    Figure 3. Removing the transport pallet
  7. Lower the heat pump on the leveling feet.
  8. Use the leveling feet to get the heat pump into a horizontal and stable position.
  9. Make sure that the heat pump frame is not in contact with the building’s structures, with the exception of the leveling feet.
