5.5 Removing the transport supports
The inner frame of the heat pump is supported because of vibration caused during transport. The transport supports must be removed before the heat pump is started. Make sure that there is enough space for removing the transport supports at the heat pump installation site.
The inner frame is supported by two brackets on both sides of the heat pump.

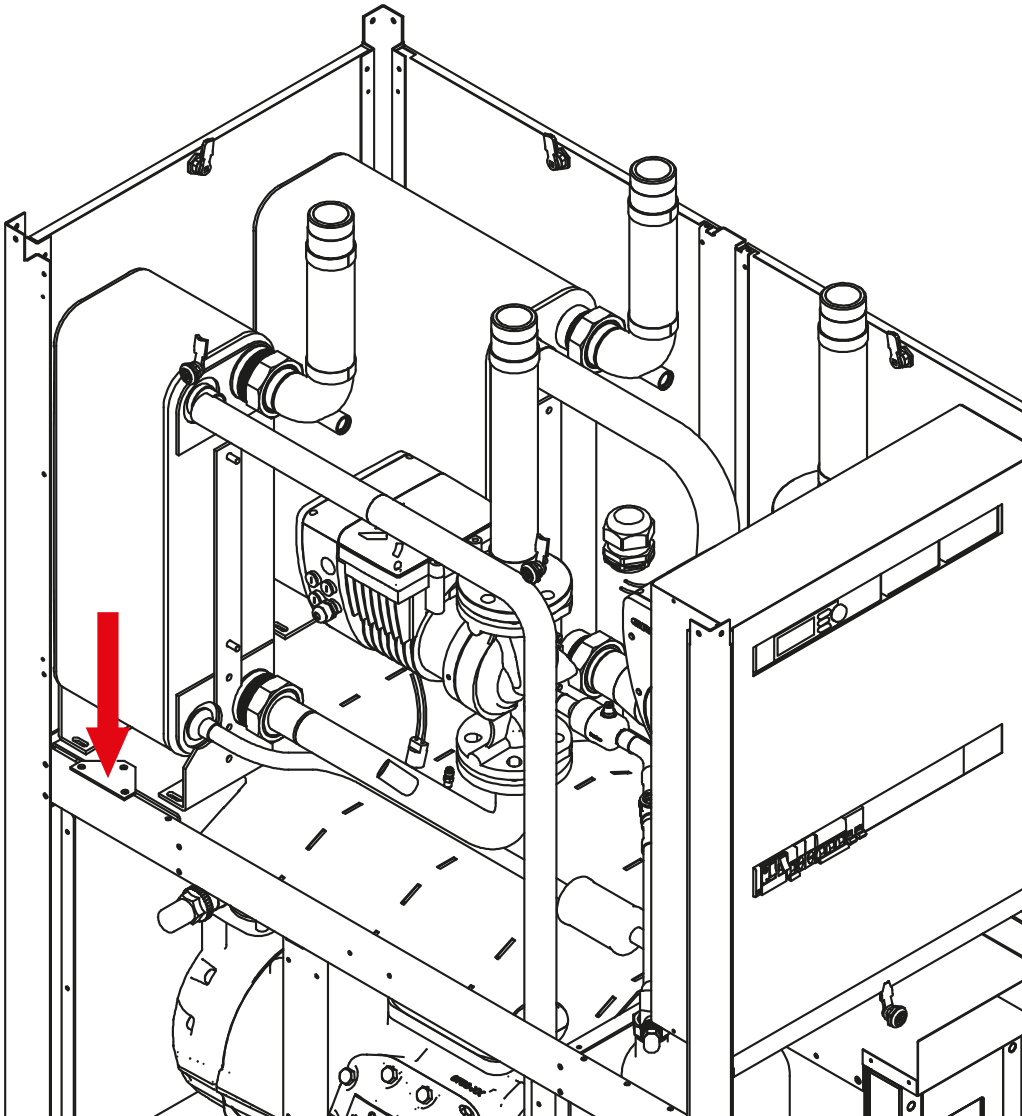

Figure 1. Removing the brackets
In addition to these brackets, the sprung compressor base of the Taurus Inverter Pro heat pump is supported by four transport supports.

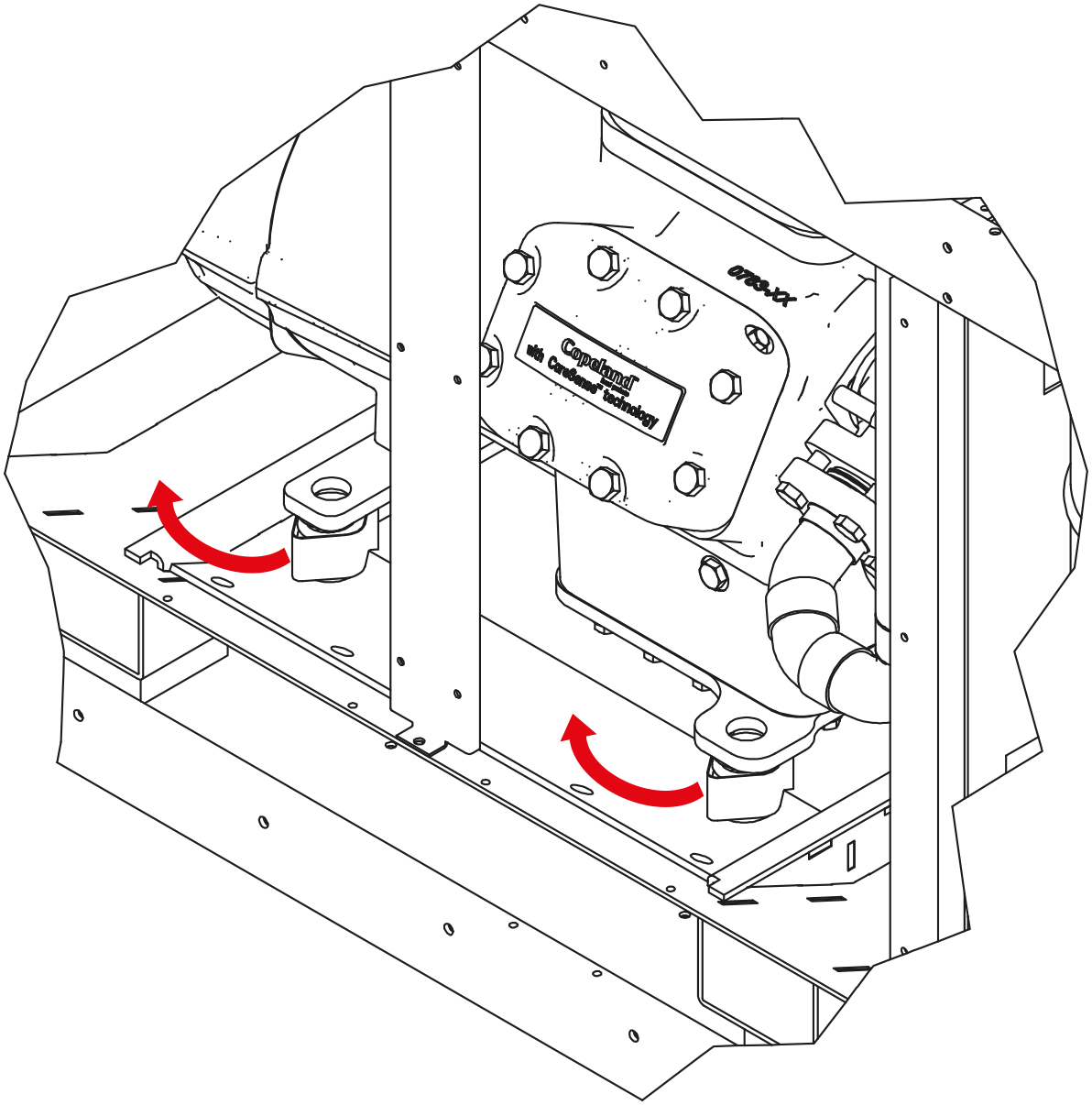

Figure 2. Compressor supports (Taurus Inverter Pro)
To remove these supports, proceed as follows:
Open the compressor’s mounting nuts evenly at all four corners.
Make sure that there is a gap of 2 mm between the nut and rubber sleeve as shown in the figure.
- Remove the transport support in between.

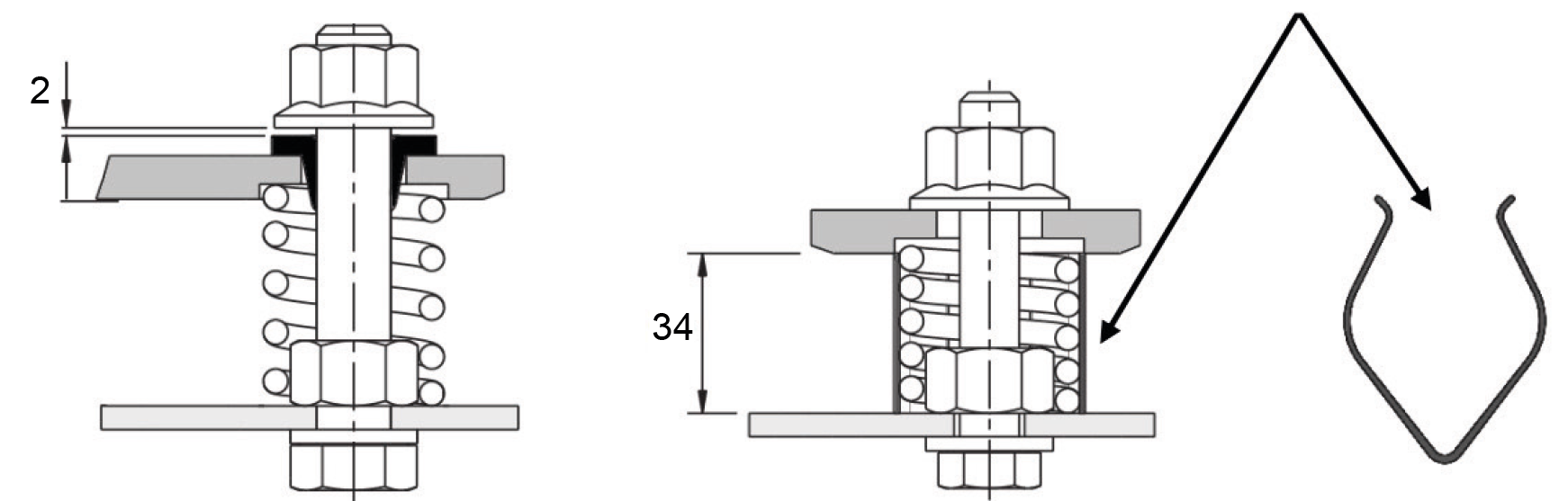

Figure 3. Removing the compressor supports (Taurus Inverter Pro)
