5.4 Removing and installing the housing panels

The heat pump housing panels must be removed for any work carried out inside the device.

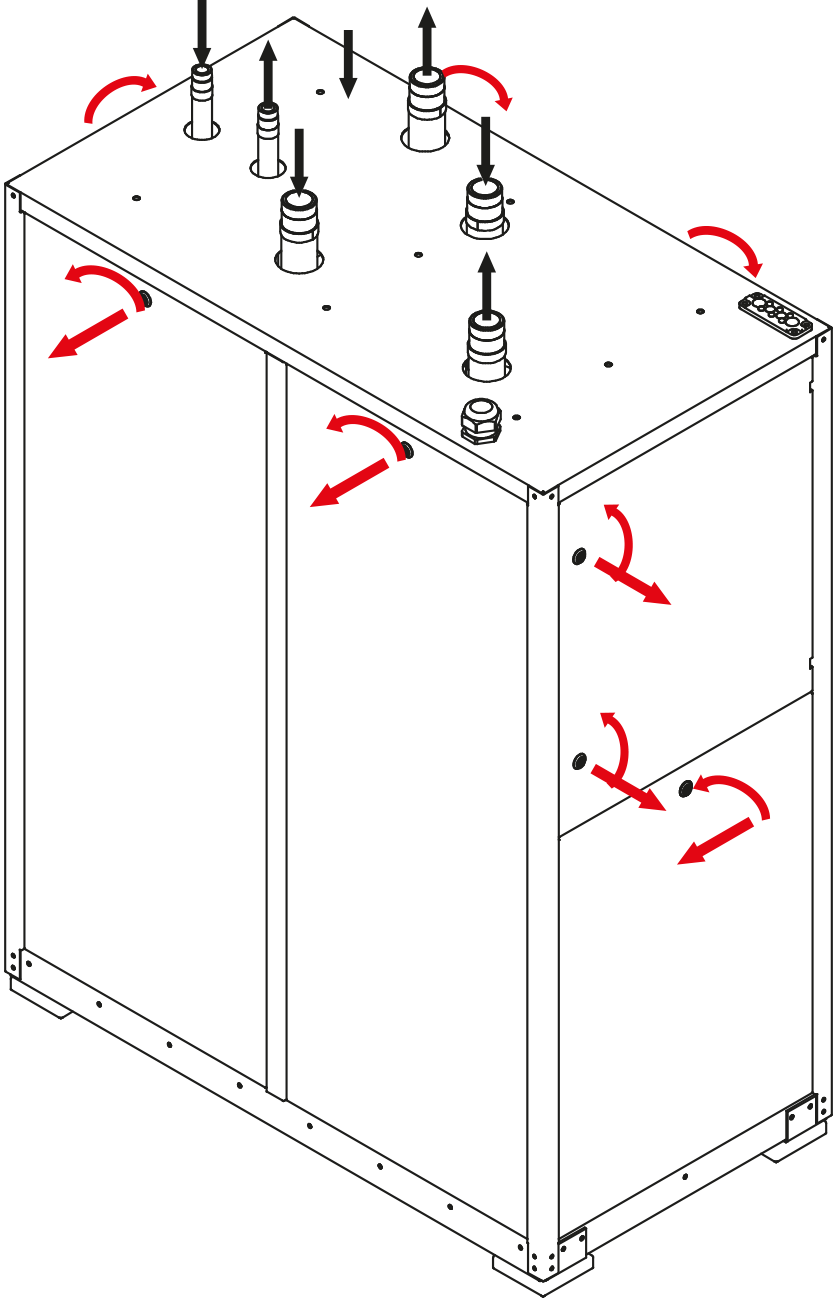

Remove the heat pump housing panels by opening the locks of the panels and pulling the panels outwards. The locks open by turning the key counterclockwise.

To reinstall the panels, lift the bottom edge of the panel in position so that the lip at the bottom edge of the panel goes in the opening made for it in the bottom plate of the heat pump. Lock the panels in place by turning the key clockwise.
