6.1 Heat pump pipe outputs

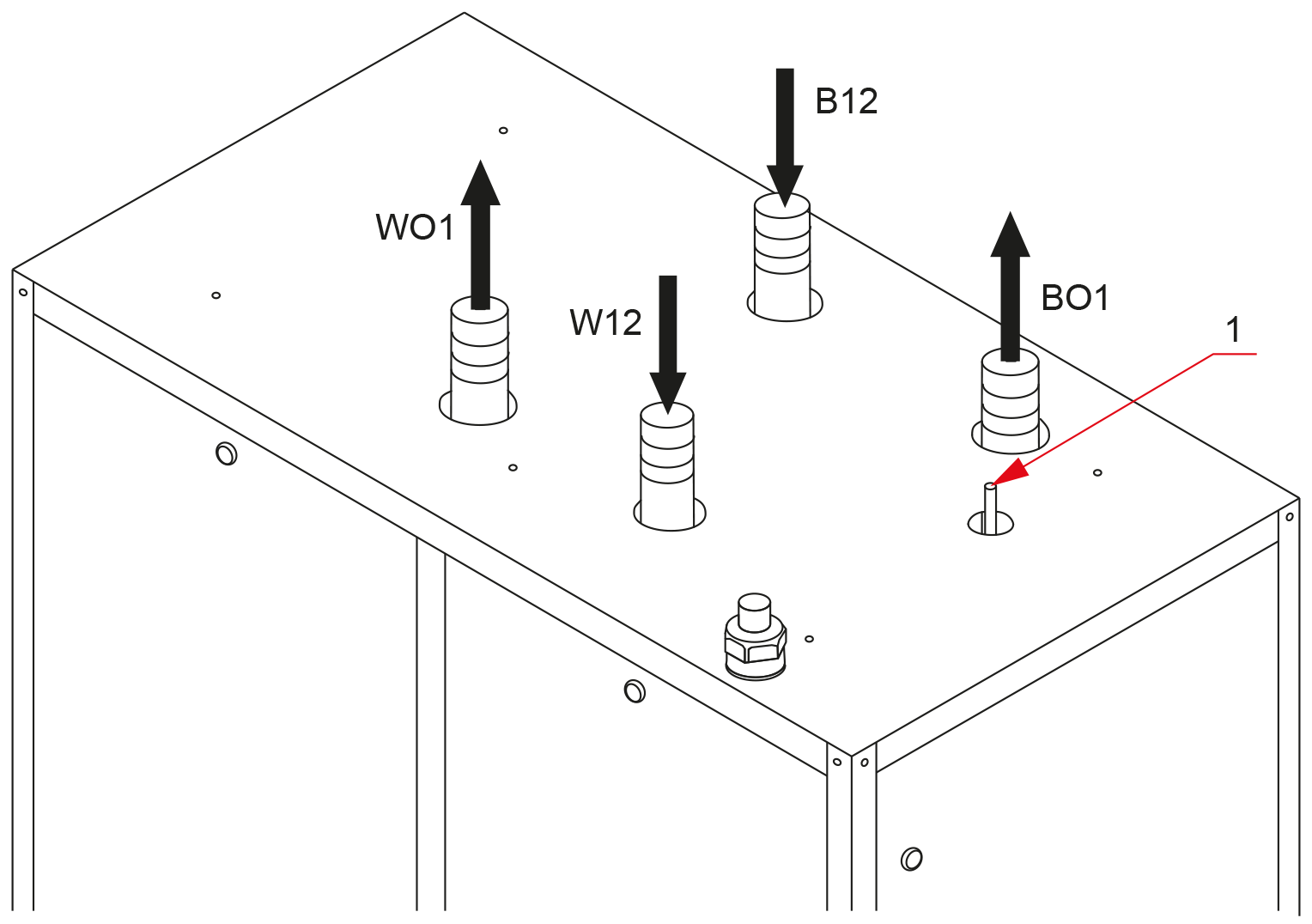

Figure 1. Pipe outputs, Taurus Inverter Pro
| 1 | Safety valve exhaust pipe (see section ) | WO1 | Charge circuit supply/out, 2” ET |
| BO1 | Collector outlet/out, 2” ET | W12 | Charge circuit return/in, 2” ET |
| B12 | Collector return/in, 2” ET |

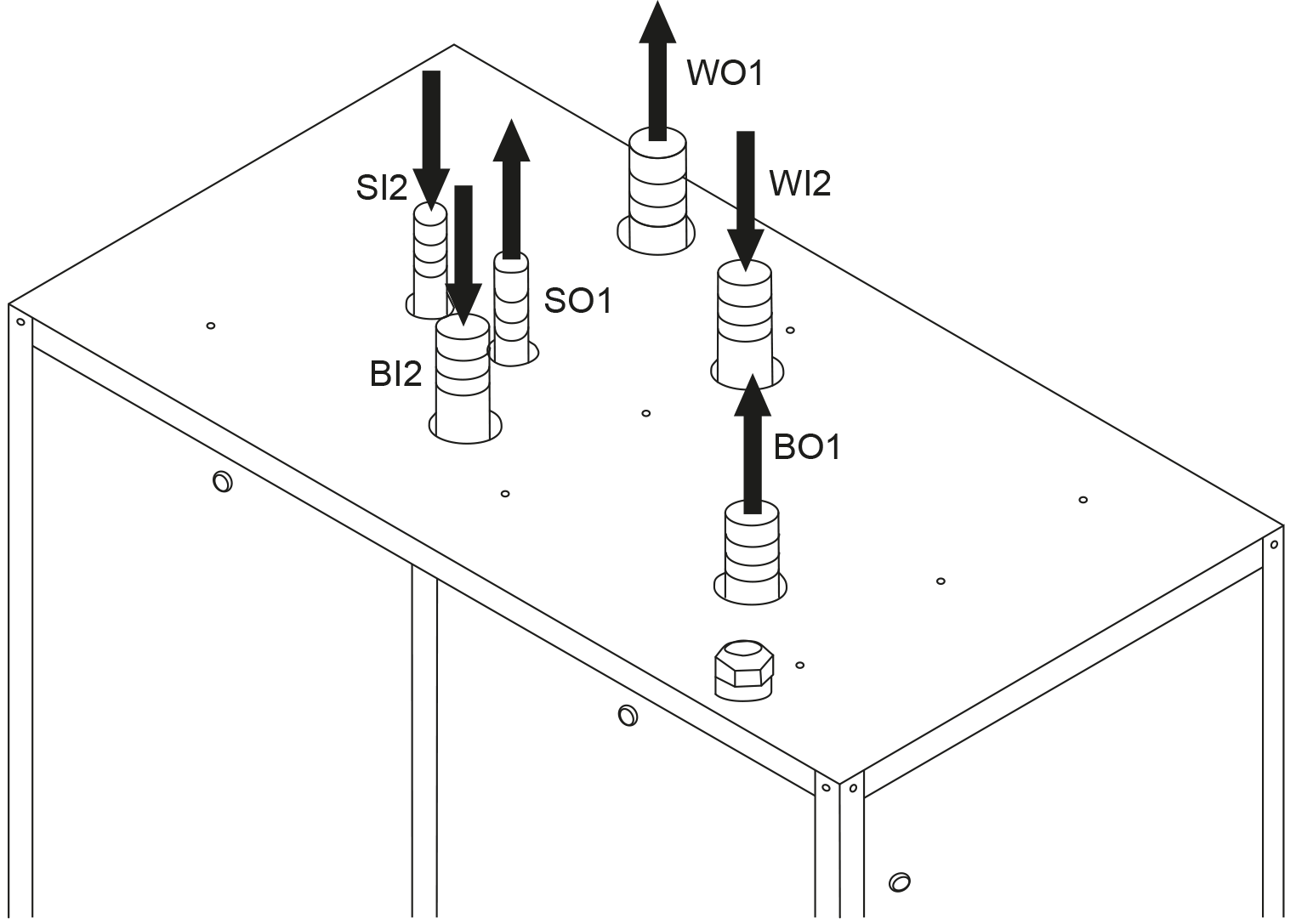

Figure 2. Pipe outputs, Taurus 80/110 EVI
| BO1 | Collector outlet/out, G2” ET | W12 | Charge circuit return/in, G2” ET |
| B12 | Collector return/in, G2” ET | SO1 | Superheating circuit supply/out, G2” ET |
| WO1 | Charge circuit supply/out, G2” ET | S12 | Superheating circuit return/in, G2” ET |
Installation dimensions of the pipe connections

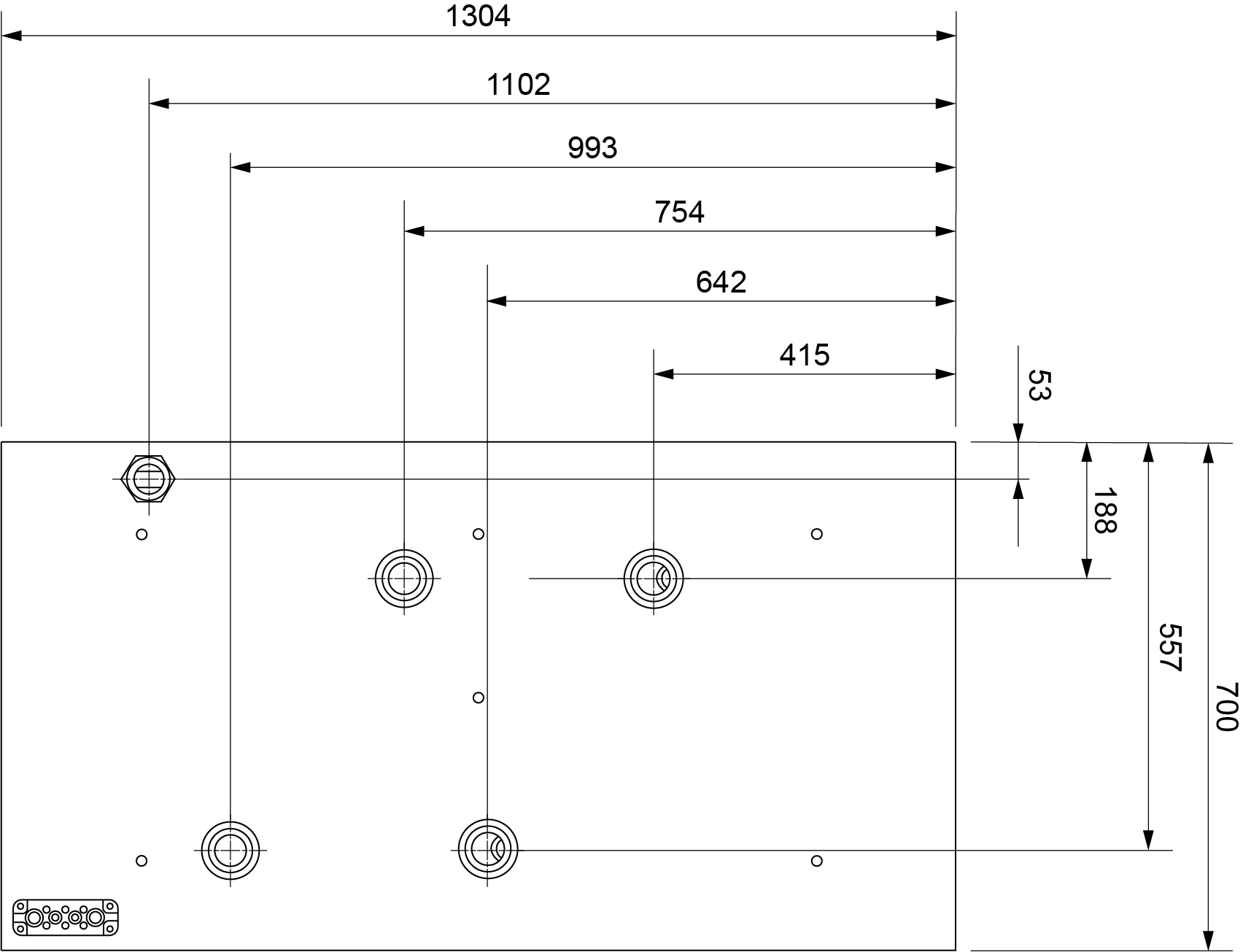

Figure 3. Taurus Inverter Pro

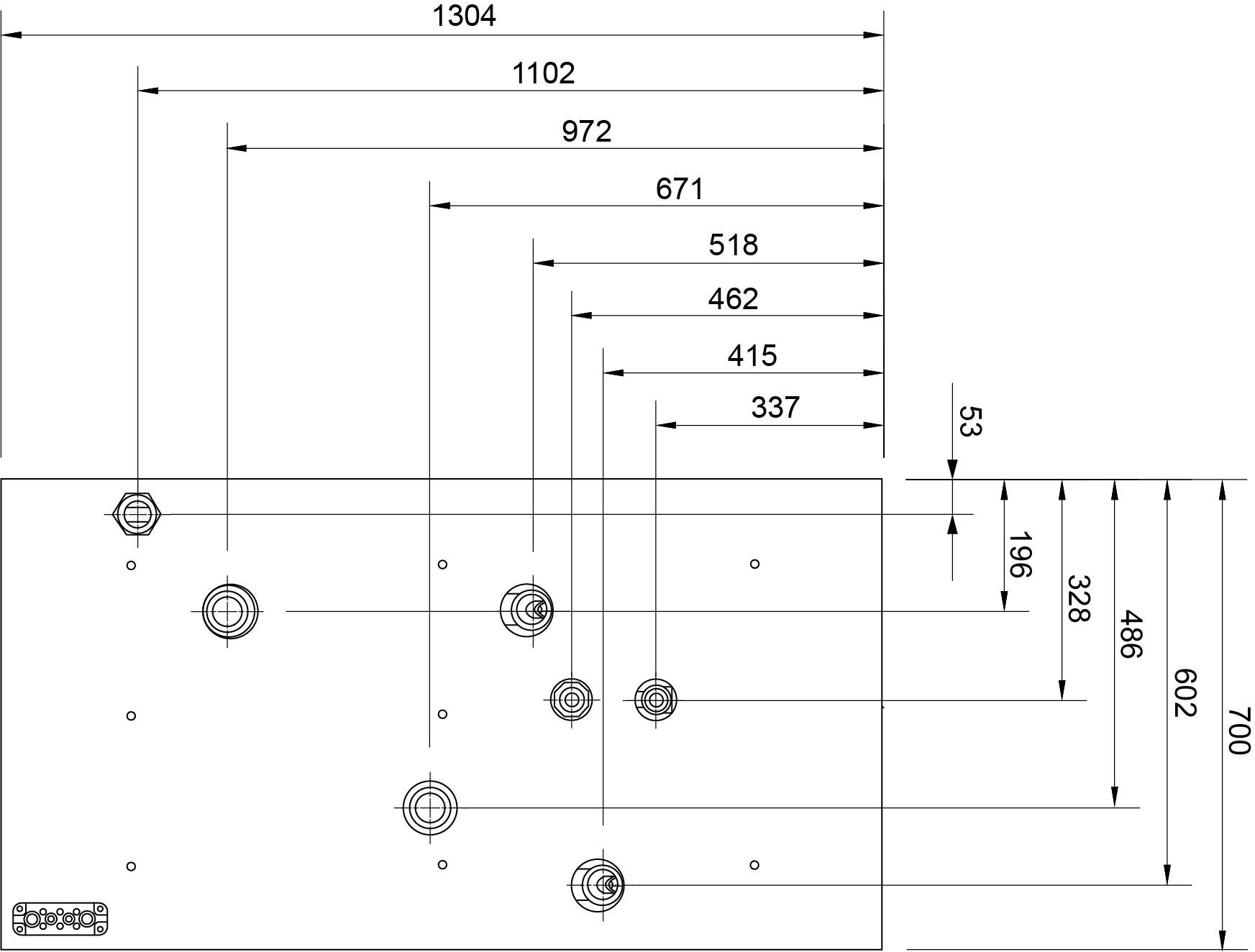

Figure 4. Taurus 80/110 EVI
