6.6 Examples of heating systems
Gebwell Taurus heat pumps can be used to realise several types of heating systems. This section provides some examples.
Always make installations in accordance with the planned diagram. If the diagrams have abnormal connections, check with your Gebwell specialist to ensure the correct connection.

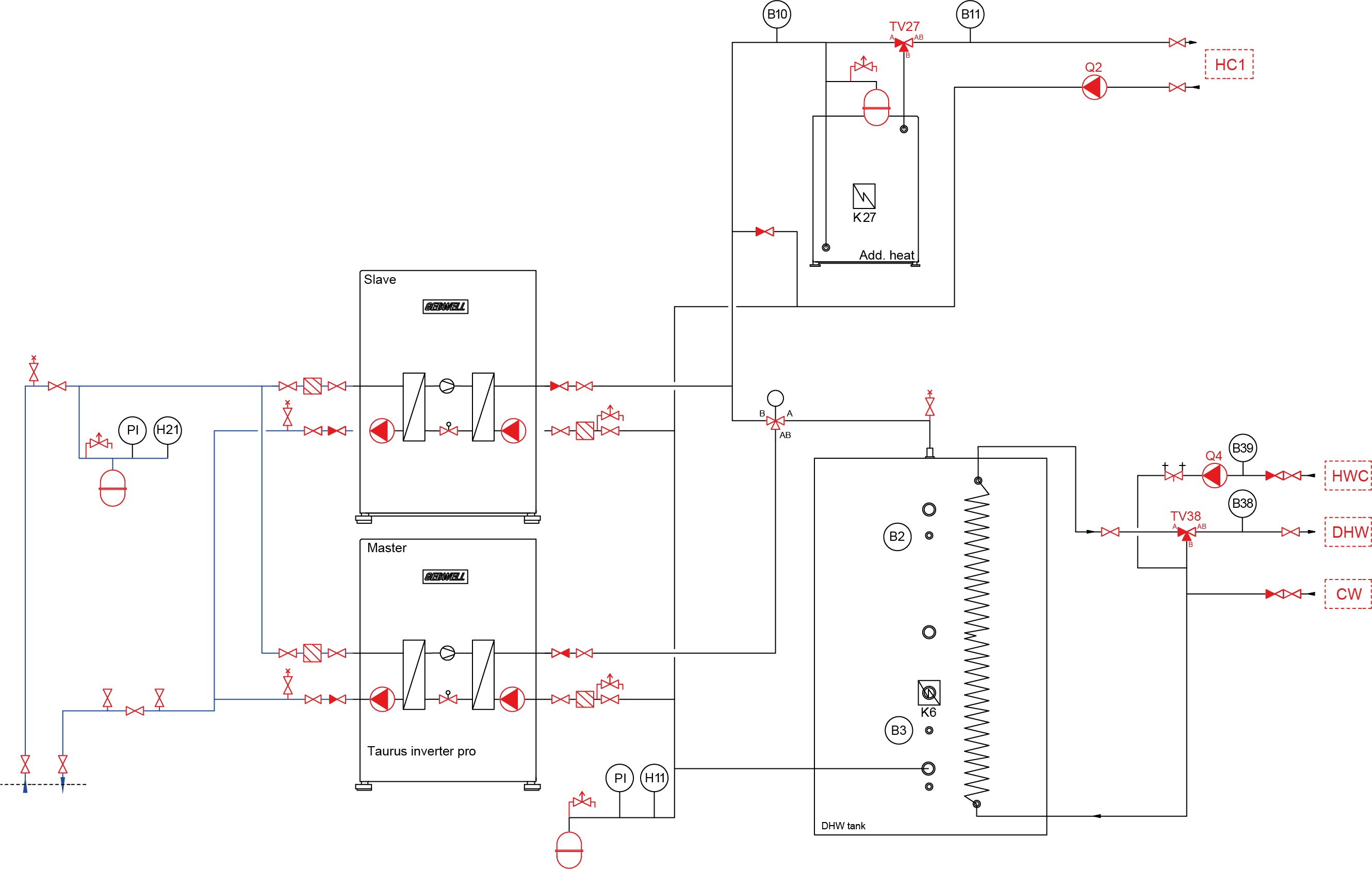

Figure 1. Taurus Inverter Pro – additional heat source – 3 heating circuits – domestic water system
Figure 2. Taurus Inverter Pro – electric heaters of the heating accumulator – 3 heating circuits – domestic water system
Figure 3. 2 Taurus Inverter Pro units – additional heat source – pump heating circuit – domestic water system
Figure 4. 2 Taurus EVI units – additional heat source – pump heating circuit – 2 mixing heating circuits – domestic water system – superheating accumulator
